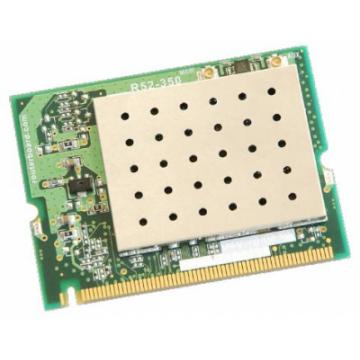

Adaptoare miniPCI R52-350

Frequencies: 802.11b/g 2.312 2.497 (5 MHz step);802.11a 4.920 6.100 (5 MHz step) Main Chipset: Atheros AR5414 Security: Hardware-based 64/128 bit WEP, TKIP and AES-CCM encryption,WPA, WPA2, 802.1x Modulation Technique: 802.11b+g: DSSS, OFDM for data rate >30Mbps802.11a: OFDM


Host Interface: Mini-PCI form factor; Mini-PCI Version 1.0 type 3B


Operation Voltage: 3.3V +/- 10% DC; 800mA max (600mA typ.)


Output Power/Receive Sensitivity: IEEE 802.11a: 24dBm / -90dBm @ 6Mbps19dBm / -70dBm @ 54MbpsIEEE 802.11b: 25dBm / -92dBm @ 1Mbps25dBm / -87dBm @ 11MbpsIEEE 802.11g: 25dBm / -90dBm @ 6Mbps20dBm / -70dBm @ 54Mbps


Transfer Data Rate: 802.11b:11,5.5,2,1 Mbps, auto-fallback802.11g(Normal mode):54,48,36,24,18,12,9,6 Mbps, auto-fallback802.11g(Turbo mode):108,96,72,48,36,24,18,12 Mbps, auto-fallback802.11a(Normal mode):54,48,36,24,18,12,9,6 Mbps, auto-fallback802.11a(Turbo mode):108,96,72,48,36,24,18,12 Mbps, auto-fallback


Supported OS: MikroTik RouterOS, Windows XP, GNU/Linux


Operation Temp.: -20A°C to 70A°C


Storage Temp.: -65A°C to 100A°C


Humidity Range: Operating 5% to 95% (non-condensing)


Wi-FiR: WECA Compliant


EMC Certificate: FCC part 15 (USA)


Media Access Protocol: CSMA/CA with ACK architecture 32-bit MAC


Connectors: 2 UFL connector


Dimensions: 6.0cm x 4.5 cm
