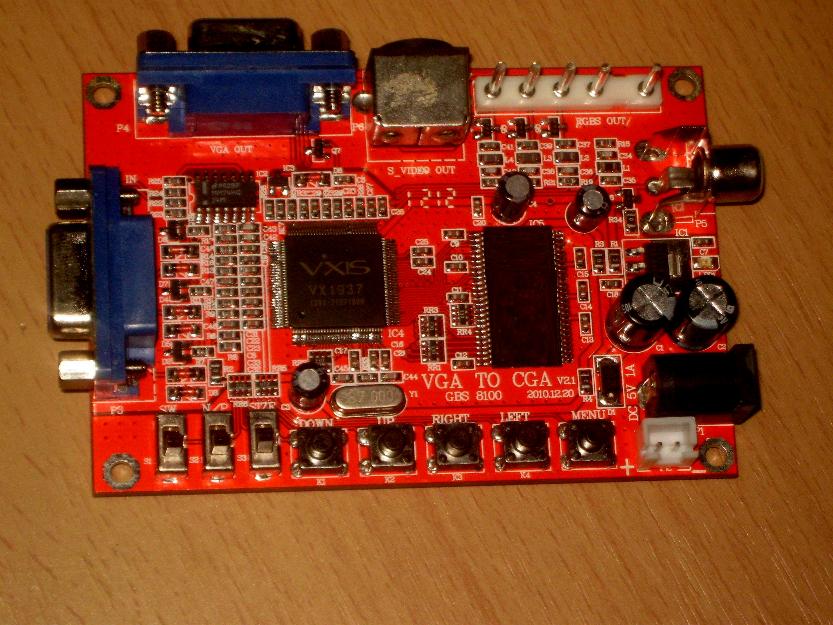

Convertor VGA-CGA cu 4 iesiri si o intrare , 170 RON

convertor vga-CGA cu 4 iesiri si o intrare
Iesiri:
vga out


s_video out


rgbs out


av out

Intrari

vga in

The RGB, CGA, EGA, HD to VGA Converter PCB board is designed for application in Industry and Gaming. Used for the easy upgrade of old monitors to modern display screens. VGA Converter accepts and converts input signal timings of CGA, EGA, High Definition 480–1080p/i and VGA for output at resolutions of selectable VGA, SVGA, XGA or HDTV.
It has a high compatibility with the majority of Video Systems as found in Industrial CNC machinery and Gaming cabinets. The output will support all CRT, LCD and PDP monitors. Now the retro-fit of older, superceded monitors is easy. The upgrade replacement monitors can also be better utilised for superior display of information and video using OSD options and colour adjustment pots.
Complete with two VGA D-sub outputs, available input connections are RGBS, RGBHV and Component RGB. Manual input selection by on-board push button controls and auto detection of the connected input signal timing allows for easy connection of the video source.
Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input.

- Supports VGA output by pass.
- CGA signal output(15K).
- Video/S-Video output.
- Supports NTSC & PAL.
- Supports position control & zoom control.
- True digital 24-bit A/D converter for true 16.7-million color conversion.
- English OSD Adjust menu.
SPECIFICATIONS
Power DC5V 2A /- 0.5v P1 or P2
Input signal
VGA
640*480@60/72/75/80/85 Hz
800*600@60/72/75/80/85 Hz
1024*768@60/72/75/80 Hz
1280*1024@60/72/75 Hz
Output signal
CGA
480i @60Hz
VGA By pass
Video 480P NTSC/PAL
S-Video 480P NTSC/PAL
User control
Output Switch,
Image Zoom,
Image Position,
Output adjust.
Menu Key
Dimensions 100*70*20mm
